50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Product Categories
Dongguan Reomax Electronics Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

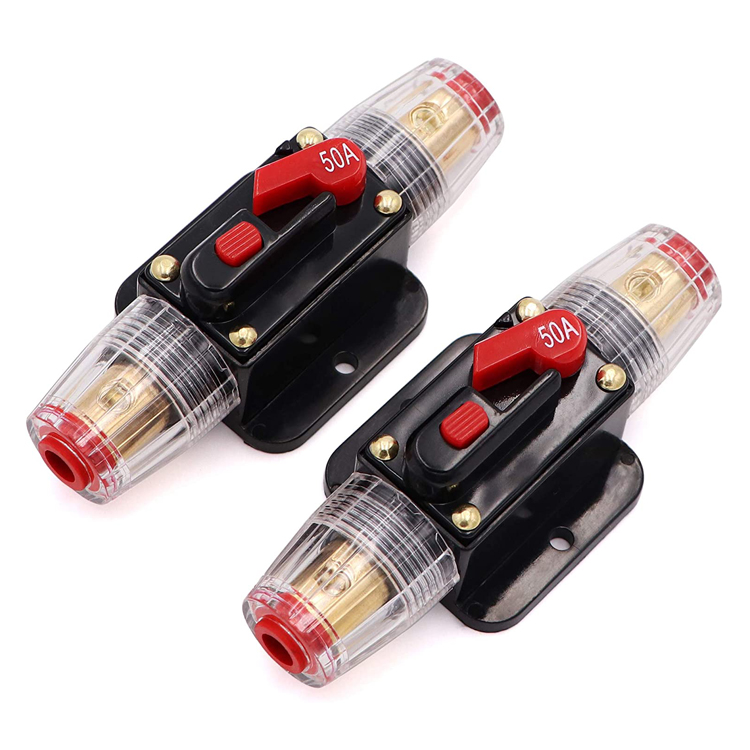

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Model Number : CB-01-050

Place of Origin : China

MOQ : 100

Price : USD $3.5~$5 per piece

Payment Terms : T/T

Supply Ability : 1K pieces per week

Delivery Time : 10 work days

Packaging Details : 20pcs per box, 100pcs per carton

Item Name : Inline Car Circuit Breaker

Part No. : CB-01-050

Dimension : 98 x 43 x 35 mm

Mounting Type : Panel

House material : ABS

Terminal material : zinc alloy

Voltage Rating : 12V 24V

Current Ratin0.1A~20Ag : 50A

RoHS Compliant : Yes

Halogen free : Yes

Net weight : 81g

MPQ : 20PCS

MOQ : 100PCS

Contact Now

50 Amp Circuit Breaker with Manual Reset Button Inline Fuse Holder 50A for Car Audio Marine Boat Stereo

Description

Protection for automotive electronics.

Prevent car currents from being too high and damaging automotive electronic equipments.

Item Name car audio Circuit Breaker
Reset Type Auto and manual disconnect, manual reset
Ur 12V 24V
Ir 50A
Housing Material ABS
Protection Grade IP 67
Wire Gauge 1~15AWG
Ambient Temperature -10C ~ +50C
Compliance SAE J1625; ABYC E-11; CE; SAE J1171

Product Specification:
1. Material: ABS and zinc alloy
2. Dimension: 3.85'' (L) x 1.69'' (W) x 1.37'' (H)
3. Rated Voltage: 12~24V DC
4. Net weight: 80g
5. Suitable wire gauge: 1~15 AWG
6. Operation temperature: -10°C ~ 50°C (-14F to 122F).
7. Rated current: 20A 30A 40A 50A 60A 80A 100A 125A150A
Features:
Manual disconnecion, push button.
Self-testing & Manual Override.
Reset type: Switchable Manual Reset
Easy to operate with manual reset arm.
No need to change fuses.
Can be mounted on panel or firewall.
Application:
Suitable for car audio/video system, Boat, trucks, buses, RV's, ATV Winches and marine and DC sound amplifier system overload protection
50 Amp Overload Protection Switch Audio Circuit Breaker 50A

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Buttom Explanation

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Structure

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Drawing

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Wire gauge specification

50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

Standard Package

20pcs per box, 100pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Warmly Reminder:
1. Please use it under right work temperature, to avoid it is too heat and stop work.
2. Please correctly push the button to avoid damage the Circuit Breaker.
  • Company warehouse
  • 50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers
FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What are your terms of payment ?

A: 100% in advance, T/T.

50 Amp Boat Circuit Breakers 98mm Length 24V 50A Audio Breakers with zinc alloy Terminal

Item Name car audio Circuit Breaker
Reset Type Auto and manual disconnect, manual reset
Ur 12V 24V
Ir 50A
Housing Material ABS
Protection Grade IP 67
Wire Gauge 1~15AWG
Ambient Temperature -10C ~ +50C
Compliance SAE J1625; ABYC E-11; CE; SAE J1171

Circuit Breaker with Manual Reset Fuse Holder for Car Audio Marine Boat Stereo Switch Inverter Replace Fuses

Circuit Breaker

for HI-current operation accept two Ring Terminals

HI-AMP Circuit Breakers
Auto, Manual, & Switchable Reset
Available Rating: 20A 30A 40A 50A 60A 80A 100A 125A150A

Nickel or Gold plated


Applications:

Used in auxiliary accessory circuits where you need hi-amp current & protection too. Cars,Trucks, Buses, RV's and Marine applications.
